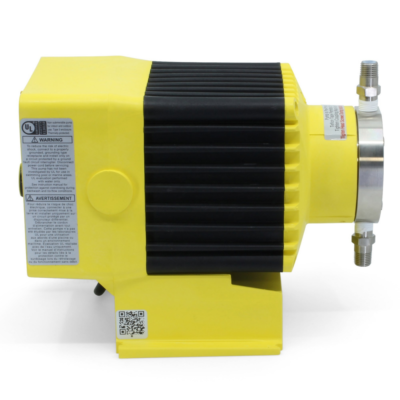

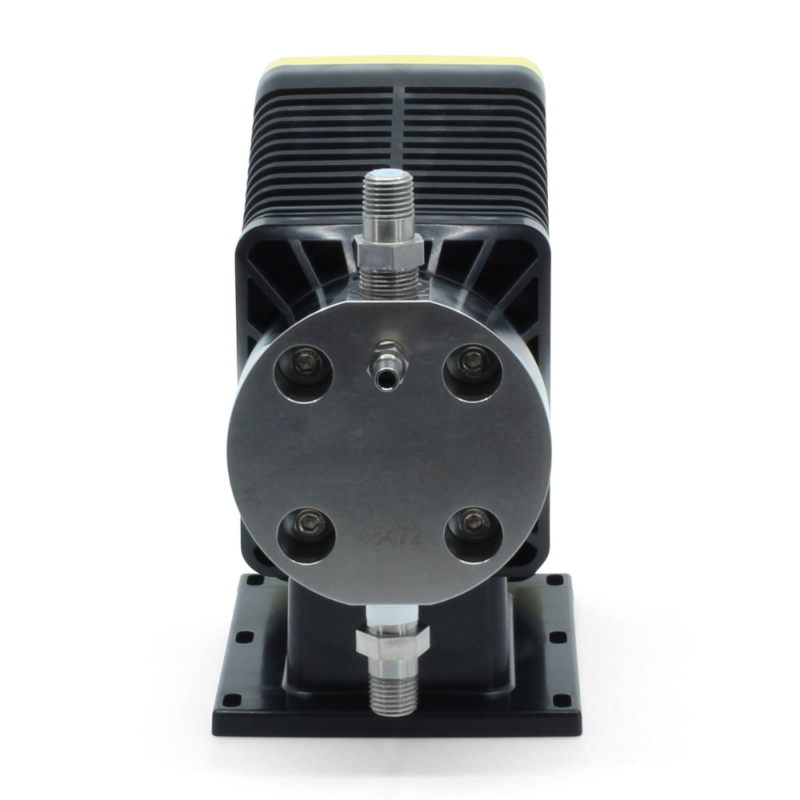

LMI Pump Model C101-297 316 SS Head, Fittings, and Seal Ring. 1.3gph/300psi max 120VAC 1/4 inch NPT M Tubing and Connections
LMI's [ C101-297 ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 1.3 GPH (4.9 LPH) ] and pressure up to [ 300.0 psi (20.7 bar) ] uses the [ C101 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-297 ] liquid end contains a [ 316 Stainless Steel ] head, [ 316 Stainless Steel ] fittings, [ 316 Stainless Steel & PTFE (Teflon) ] seals, and [ 316 Stainless Steel ] check valve balls // LMI Pump Reference: Repair Kit [ Sold as Parts ]
LMI Pump Model C111-468SI 2.5gph/150psi max.375 OD tubing and Fittings. 4FV 120VAC
LMI's [ C111-468SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 2.5 GPH (9.5 LPH) ] and pressure up to [ 150.0 psi (10.3 bar) ] uses the [ C111 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-468SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVC ] head, [ PVC ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C111-468TI, C111-72S, C111-72T, C111-74, C111-74S ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]

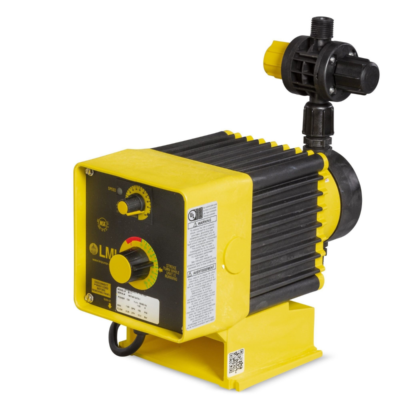

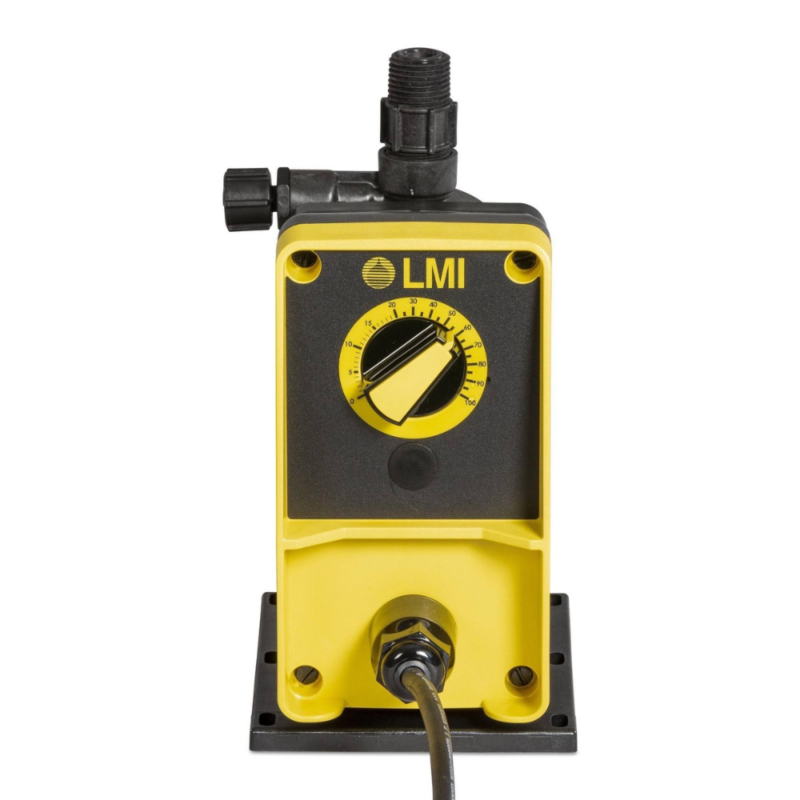

LMI Pump Model C121-362SI. 4.0gph / 100psi max. 4FV.375 OD tubing. Includes Injection Valve, Foot Valve, Weight, and tubing.
LMI's [ C121-362SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 4.0 GPH (15.1 LPH) ] and pressure up to [ 100.0 psi (6.9 bar) ] uses the [ C121 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-362SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVDF (Kynar) ] head, [ PVDF (Kynar) ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C121-362SP, C121-362TI, C121-362TP ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]

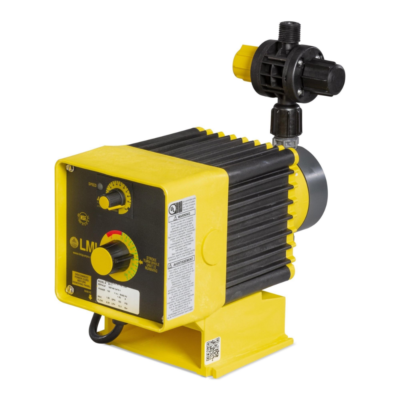

LMI Pump Model C121-468SI 4gph/100 psi max 4FV 120VAC
LMI's [ C121-468SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 4.0 GPH (15.1 LPH) ] and pressure up to [ 100.0 psi (6.9 bar) ] uses the [ C121 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-468SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVC ] head, [ PVC ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C121-468TI, C121-72S, C121-72T, C121-74, C121-74S ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]

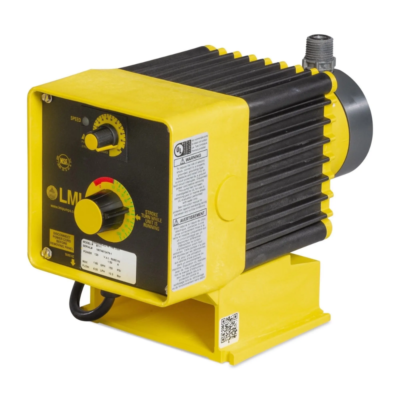

LMI Pump Model C121-75HV. High Viscosity Pump. 4.0gph/100psi max. Includes Injection Valve, Foot Valve, Weight, and tubing.
LMI's [ C121-75HV ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 4.0 GPH (15.1 LPH) ] and pressure up to [ 100.0 psi (6.9 bar) ] uses the [ C121 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-75HV ] liquid end contains a [ Polypropylene ] head, [ Polypropylene ] fittings, [ PTFE (Teflon) ] seals, and [ 316 Stainless Steel ] check valve balls // LMI Pump Reference: Replaces [ C121-75HP ]; Repair Kit [ SP-75HV ]
LMI Pump Model C711-362SI 2.5gph/150psi max 4FV 120VAC .375 OD Connections
LMI's [ C711-362SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 2.5 GPH (9.5 LPH) ] and pressure up to [ 150.0 psi (10.3 bar) ] uses the [ C711 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-362SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVDF (Kynar) ] head, [ PVDF (Kynar) ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C711-362SP, C711-362TI ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]

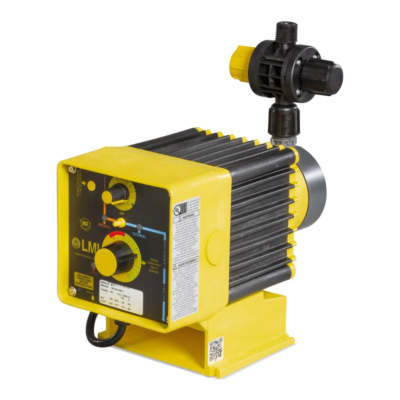

LMI Pump Model C721-465SI .375 inch OD 4.0gph/100psi 120vac 4fv
LMI's [ C721-465SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 4.0 GPH (15.1 LPH) ] and pressure up to [ 100.0 psi (6.9 bar) ] uses the [ C721 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-465SI ] liquid end - with [ 57709 ] Multi-Function Valve contains a [ Polypropylene ] head, [ Polypropylene ] fittings, [ PTFE (Teflon) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C721-465TI, C721-75S, C721-75T ]; Repair Kit [ RPM-465 ]; Multi-Function Valve [ 57706 Retrofit or 57709 Replacement ]
Key Specs
LMI Pump Model C741-35T 20gph/25psi max 0.5 inch OD tubing and Connections. 120VAC
LMI's [ C741-35T ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 20.0 GPH (76.0 LPH) ] and pressure up to [ 25.0 psi (1.7 bar) ] uses the [ C741 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-35T ] liquid end contains a [ Polypropylene ] head, [ Polypropylene ] fittings, [ PTFE (Teflon) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Repair Kit [ SP-U6 ]
LMI Pump Model C771-25T 10gph/80psi max 120VAC .5 OD tubing and Connections

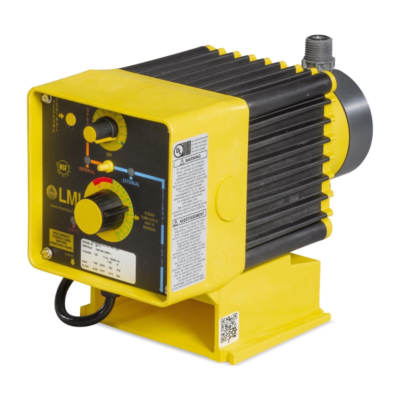

LMI Pump Model C771-26S. 10.0gph/80psi max. PVC Head and Fittings. FKM Seal Ring.
LMI's [ C771-26S ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 10.0 GPH (38.0 LPH) ] and pressure up to [ 80.0 psi (5.5 bar) ] uses the [ C771 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-26S ] liquid end contains a [ PVC ] head, [ PVC ] fittings, [ FKM (Viton) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Repair Kit [ SP-26 ]

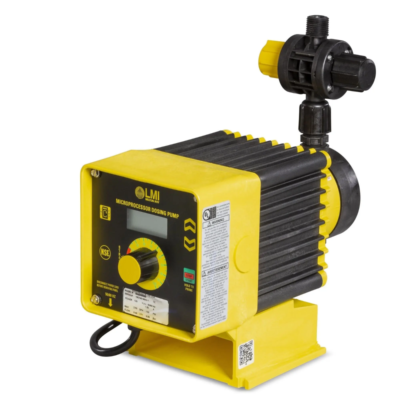

LMI Pump Model C911-362SI 2.5gph/150psi max 4FV .375 inch OD Tubing and Connections
LMI's [ C911-362SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 2.5 GPH (9.5 LPH) ] and pressure up to [ 150.0 psi (10.3 bar) ] uses the [ C911 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-362SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVDF (Kynar) ] head, [ PVDF (Kynar) ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C911-362SP, C911-362TI ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]
LMI Pump Model C921-362SI 4.0gph/100psi max 4FV 120VAC .375 OD Tubing and Connections
LMI's [ C921-362SI ] C Series - solenoid driven, electronic metering pump for chemical feed up to [ 4.0 GPH (15.1 LPH) ] and pressure up to [ 100.0 psi (6.9 bar) ] uses the [ C921 ] drive end with [ Manual (Stroke Volume) ] control and [ Standard US 115V ] power cord. The [ LE-362SI ] liquid end - with [ 57708 ] Multi-Function Valve contains a [ PVDF (Kynar) ] head, [ PVDF (Kynar) ] fittings, [ PVDF (Kynar) & Polyprel (TFE/P - Aflas) ] seals, and [ Ceramic ] check valve balls // LMI Pump Reference: Replaces [ C921-362SP, C921-362SU, C921-362TI ]; Repair Kit [ RPM-362/368 ]; Multi-Function Valve [ 57706 Retrofit or 57708 Replacement ]
